We have 2 units of Trafotek DRY-TYPE 3 phase Transformer available in Stock.
These were used in a marine seismic compressor on a seismographic vessel
Location: Europe

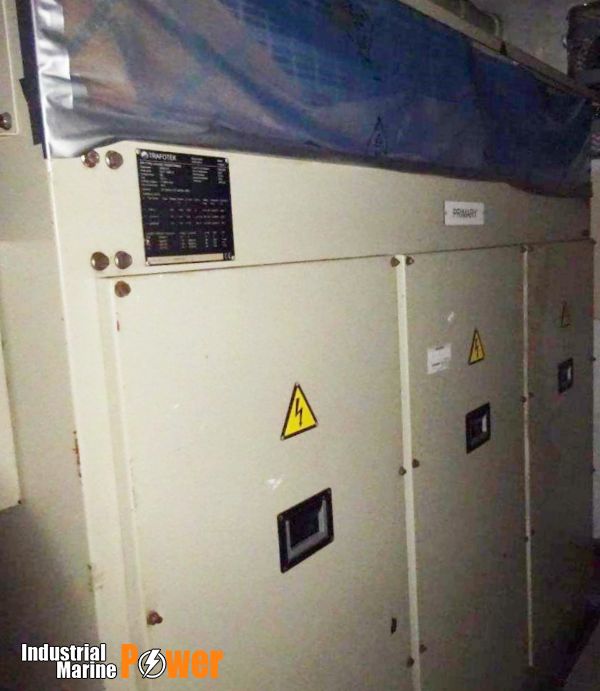

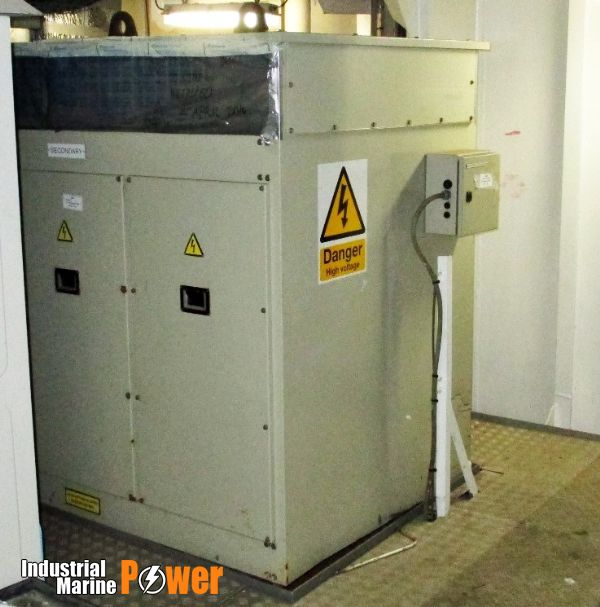

Trafotek Transformer
DRY-TYPE 3 Phase
Year: 2007
Power: 1400 kVA
Freq: 60 Hz
IP23

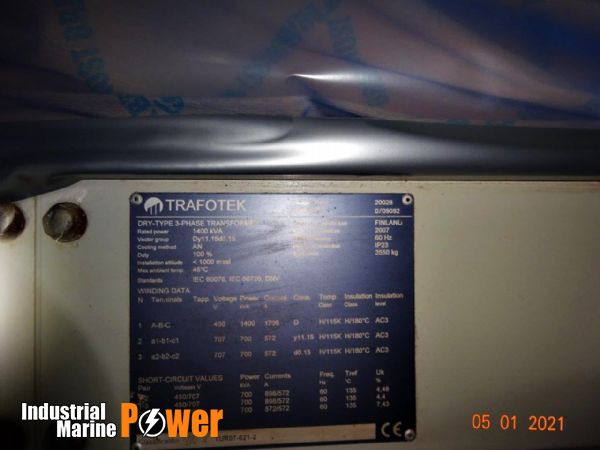

Winding Data
Terminal A-B-C: 450 V, 1400 kVA, 1700 A Conn. D, H/115K temp class, H/180 C Insulation Class, AC3 Insulation Level
Terminal A1-B1-C1: 707 V, 700 kVA, 572 A Conn. y11.15, H/115K temp class, H/180 C Insulation Class, AC3 Insulation Level
Terminal A2-B2-C2: 707 V, 700 kVA, 572 A Conn. d0.15, H/115K temp class, H/180 C Insulation Class, AC3 Insulation Level
Please get in touch with us for more details.
