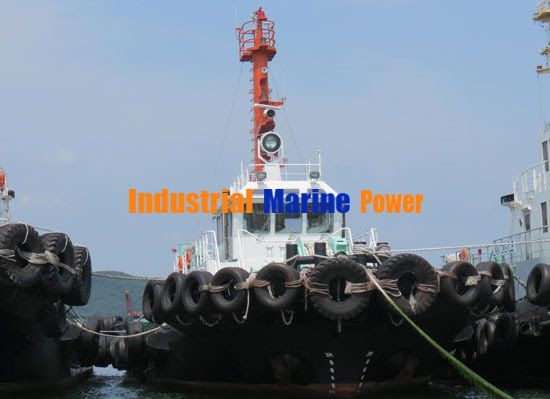

2010BLT 3600HP ASD TUG REF BEXT004/ KR/2015

TYPE: AZIMUTH STERN DRIVE TUG
BUILT: 22ND NOV. 2010 IN KOREA
CLASS: KR
NAVI.AREA: COASTAL
LENGTH(O.A/B.P) 33.65M/29.2M
BREADTH/DEPTH: 8.7M/3.8M
DRAFT: F 1.95M/ A 3.35M
MAIN ENGINES: CUMMINS KTA 50M2 1800PS X 1900RPM X 2SETS
PROPULSION: SCHOTTEL SRP 1012FP REDUCTION :5.85
GENERATOR: CUMMINS 6BT5.9-D(M) 150HP X 2
BOLLARD PULL : AHEAD 46T ASTERN 43T
TOWING WINCH: DONG SUNG ENG(ELECTRO HYDRAULIC TYPE)
TOWING HOOK: PP FIBER MIXED YARN, 8 STRANDS 200M
WINDLASS: LOAD 3T / SPEED 12M/MIN
HULL COMPARTMENTS
    NO.1 F.O.T(P) 20.5M3
    NO.1 F.O.T(S) 20.5M3
    NO.2 F.O.T(P) 17.8M3
    NO.2 F.O.T(S) 17.8M3
    NO.3 F.O.T(C) 16.8M3
    F.W.T(P) 14.1M3
    F.W.T(S) 14.1M3
    DRAIN.T(S) 1.3M3
    SLUDGE.T(P) 1.3M3
    FOAM.L.T(C) 5.8M3
    NO.1 VOID(C) 9.2M3
    NO.2 VOID(C) 9.9M3
    BOSUN STORE 33.3M3 ANCHOR WEIGHT : 492KG(S) 493KG(P)
OIL WATER SEPERATOR: 0.3M3/H
SEWAGE TREATMENT: 15 MAN/DAY
SEA TRIAL SPEED: 13.5KNOTS
FIRE FIGHTING
    FOAM FIRE PUMP(1EA) CENTRIFUGAL 3.6M3/H X 90M
    FIRE PUMP(1EA) MULTISTAGE,CENTRIFUGAL PUMP
    120M3/H X 80M, 55KW X 3600RPM
    FIRE MONITOR(2EA) 36M3/HR
PRICE : CAN GUIDE CLOSELY.

INFORMATION SUPPLIED IN GOOD FAITH BUT WITHOUT GUARANTEE SUBJECT TO AVAILABILITY.
