34 MW Condensing Steam Turbine with HFO Boiler Package

 34 MW Condensing Steam Turbine with HFO Boiler Package

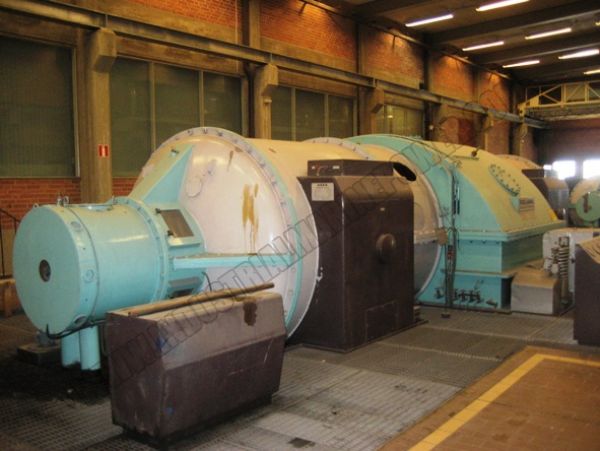

Stal Laval condensing steam turbine, condenser, HFO Boiler, control system,

3000 rpm, 50 HZ, 6600 V, Max design inlet pressure: 70 bar, Max design inlet

temp: 505°C, Normal operation inlet pressure: 61 bar, Normal operation inlet temp:

480°C, Steam consumption at nominal load: 140 t/h, The turbine is provided with 4

uncontrolled bleedings for feed water pre-heat to 181°C. Complete system that has

been rotated on a regular basis and kept in a warm dry building. Well maintained

in good condition.
