Subject: 400MW( 100MW X 4 SETS) 60HZ Westinghouse gas turbine generators for sale


Date: 3.5.2018 06:02:25

Details: Reviews 4

We have following gas powered power plant for sale

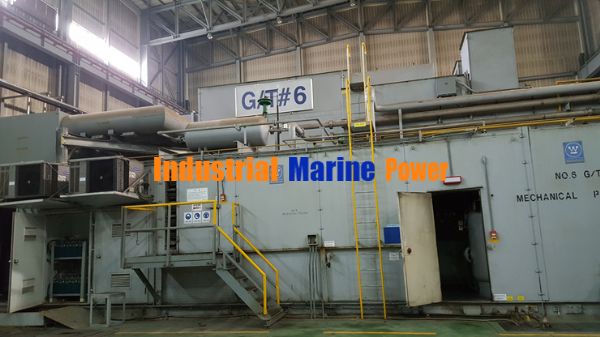

400MW (60HZ) GAS TURBINE POWER PLANT

GAS TURBINE GENERATOR SET: 100MW x 4 units

HZ: 60hz

Fuel : LNG

Build in:1995

stopped operation : June 2013

 Gas Turbines

Manufacturer : WESTINGHOUSE(SIEMENS)

Model Name : W501D5

Type : Axial Flow

Power Output : 100,000 kW(100MW)

Stages : 4 stage

Inlet Temp. : 1093 ℃

Exhaust Temp. : 530 ℃

Exhaust Flow : 1313272 kg/h

TAC Temp. : 15℃

Speed Governor : DEHC

  -Starter System

Type : Electric Motor

Capacity : 1530 kW

Quantity : 1 ea

  -Combustor

Type : Can-Annular

Quantity : 14 ea

  -Compressor

Type : Axial Flow

Air Mass Flow : 358 N㎥/min

Inlet Temp. : 15℃

Pressure Ratio : 14:01

Outlet Pressure : 14.462 kg/㎠

Stages : 19 stage

Outlet Temp. : 389 ℃



2.Generators

Manufacturer : WESTINGHOUSE(SIEMENS)

Type : OAC(Open-Air-Cooled)

Rated Power : 129(143) MW(MVA)

Power Factor/ short-circuit ratio : 90%/0.695

Frequency : 60Hz/2pole

Speed : 3600 RPM

Rated Voltage/Current : 13.8 kV/5731 A

Insulation Class : F

 -Exciter

Speed : 3600 RPM

Exciter Type : PMG

Rated Voltage/Current 325 V/1006 A

  Protection Devices : 87G, 59GN, 40,32,46, 51V, 60,25

Neutral Grounding : NGR

Bus Bar : IPB(3phases)

Rotation Direction : CW(Viewed Form Exciter end)



 3.Operation hours

    Gas Turbine #2.   37,013hours(1996.1~2013.6)

    Gas Turbine #3.   39,800hours(1996.1~2013.6)

    Gas Turbine #5    41,819hours(1996.7~2013.6)

    Gas Turbine #6.   40,524hours(1996.7~2013.6)

4.Operation hours from overhaul to stop

      Gas turbine #2: 16,611 hours

    Gas turbine #3: 17,098 hours

    Gas turbine #5: 17,978 hours

    Gas turbine #6: 16,921 hours



5.Scope of supply

   Turbine

   Generator

   Control panel(Electric package)

   Switchgear box

   Mechanical room equipment

Currently installed with target dismantling schedule during 2018



More details will follow on your request



I look forward to hearing from you wit your interest



Best regards

Woonha Jee



To see the contact details please Login or Register
Contact Name:
Company Name:
Mobile Phone:
Phone:
Fax:
Country:
E-Mail:
Web:

Comments      Add New Message

Darryl H Cuttell
Click here to see contact details in the message
7/21/2024 9:17:41 PM United States

looking for turbine power


Reply

William Quarshie
Click here to see contact details in the message
1/17/2024 12:14:18 PM United States

Dear Sir,

I represent a client and we are interested in your 400MW gas power plant for immediate purchase and shipment to Indonesia.

Kindly give us a quote including dismantling and shipping.



Thank you


Reply

Jones
Click here to see contact details in the message
7/30/2023 8:59:51 PM Nigeria

Can I have your selling price for tthe above gas turbine power plant?



Jones Okiah.


Reply

Marchrishah Hargrove
Click here to see contact details in the message
5/29/2023 8:59:37 PM United States

I’m looking for a Westinghouse 501b2 generator


Reply
