MAIN EQUIPMENT LIST
Plant design Capacity : 80.99 MWm / 77.13 MWe
Gas Turbine : Purchased but not installed Rolls Royce Trent 60 DLE / USA 63.07 MW

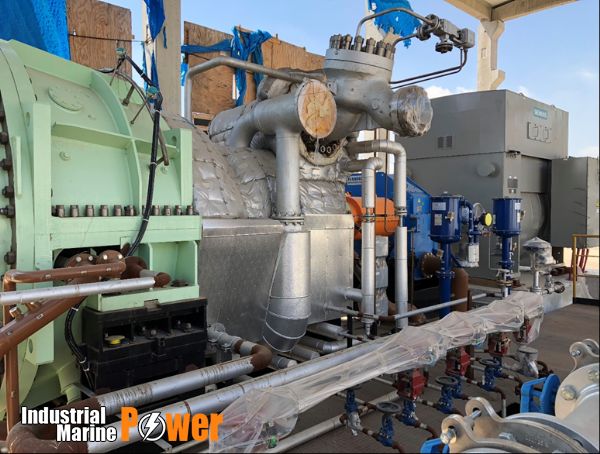

Steam Turbine : Purchased and installed. Siemens AG 30 bara. 17.92 MW
HRSG : Purchased and installed. Nooter/Eriksen
ACC : GEA
ACC Steel Structure : Produced and installed
Raw Water Tank : Produced and installed
Demineralized Water Storage Tank: Produced and installed
Service Water Tank : Produced and installed
Switchyard and transformers: Purchased and installed by Alstom Energy, Connected to 154 kV Line.
Power Line : Power line distance is 1.200 mt and Provisional Acceptance completed
Natural Gas Line : Distance is 2.200 mt and ready for acceptance by grid operator
RMSA Station : Ready for acceptance by gas supplier
Demin Water System : Aquamatch. Installed
DCS : Foxboro – not installed but manufactured and kept in supplier warehouse
MCC : Manufactured but not insalled and kept in supplier wareshouse
Pumps and valves : Ready to deliver in supplier warehouse
Oil Cooler : Kelvion. Installed
Natural Gas Simplex Filter: Eltacon Holland. Installed
Diesel Generator : Purchased but not installed. Generator 880 kVA.
Air Compressor : Atlas Copco
Cables : HES - LAPP - Helukabel - Anixter

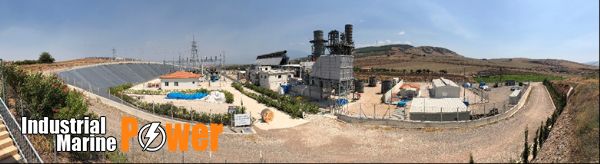

Status At Site : All listed equipment are at site. Installation started at May 2017 but stopped
Complete quote for de-commissioning and re-commissioning on request
