We are a Power Generation Company which operates Gas & Steam Turbines. We have available for sale, a Brand new LP butterfly valve preserved in vacuum packing. Since we do not have any current use for the valve, it is our intention to find a suitable buyer. The valve is located in Sohar, Sultanate of Oman.

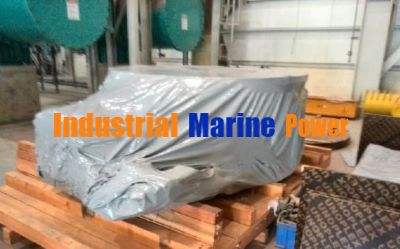

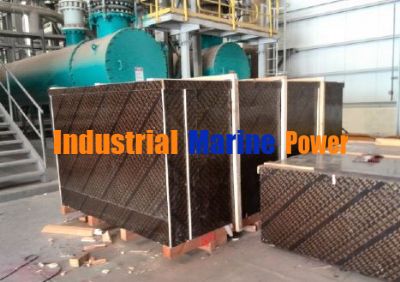

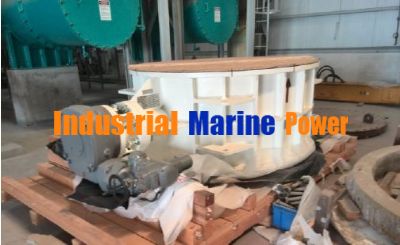

Find below the specification for the valve for your information. The drawing and photographs of the valve are enclosed for your reference.
|
Body |
Fe430B |
|
|
Disc |
Fe430B |
|
|
Upper Shaft |
AISI 420 |
|
|
Bottom Shaft |
AISI 420 |
|
|
Rubber Seat on DISC |
EPDM-HT |
|
|
Seat on body |
AISI 304 |
|
|
Seal retaining ring |
Fe430B |
|
|
Bottom bearing |
D.U. |
|
|
Upper Bearing |
D.U. |
|
|
Chevron Packing |
PTFE + RPTFE |
|
|
Gear |
Master Gear |
|
|
Electric Actuator |
AUMA |
|
|
Standard design for pipe & fittings |
ANSI B16.34 |
|
|
Face to face dimensions |
API 609 |
|
|
Flanges |
ANSI B16.5 |
|
|
Design Pressure |
6 bar G |
|
|
Design Temperature |
150 deg C. |
|
|
Type |
Double offset disc butterfly valve, Carbon Steel Body & Disc, flanged ends to UNI P 6 and DN 1800 PN 6. |
|
|
|
|
|
|
Suggested Price Range (Ex-Works, shipping not included) |
USD 350,000 – USD 400,000 |
|
If you are interested, Please feel free to contact for any further enquires.
