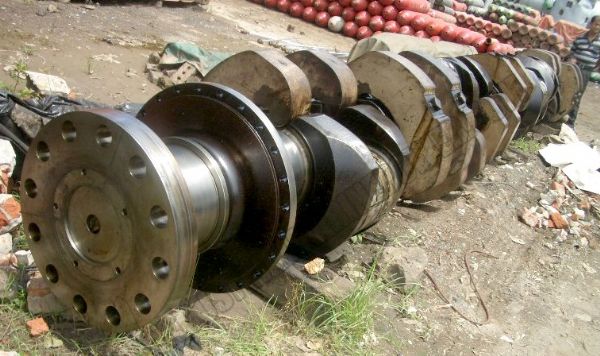

For immediate sale : Crankshaft for PIELISTIC 18 PC 2.5V
CRANKSHAFT CALIBRATION REPORT
COLLECTED FROM : FROM EX-M.V. PATRIOT
ENGINE: PIELISTIC (S.E.M.T.) 18 PC 2.5V ;
Rpm: 520 ; MFG NO: 3075 ; France
Main Pin – Diameter in mm Crank Pin – Diameter in mm
|
Pin No. |
P-S |
T-B |
|
Pin No. |
P-S |
T-B |
|
1 |
314.98 |
314.98 |
1 |
314.98 |
314.98 |
|
|
2 |
314.98 |
314.98 |
2 |
314.97 |
314.97 |
|
|
3 |
314.98 |
314.98 |
3 |
314.98 |
314.98 |
|
|
4 |
314.99 |
314.99 |
4 |
314.98 |
314.98 |
|
|
5 |
314.98 |
314.98 |
5 |
314.97 |
314.97 |
|
|
6 |
314.99 |
314.99 |
6 |
314.98 |
314.98 |
|
|
7 |
314.99 |
314.99 |
7 |
314.98 |
314.98 |
|
|
8
|
314.99 |
314.99 |
8 |
314.98 |
314.98 |
|
|
9 |
314.99 |
314.99 |
9 |
314.98 |
314.98 |
|
|
10
|
314.99 |
314.99 |
|
|
|
STAMPPING
S.NO :- 930
P.O.NO :- H 0000567
FOO5 - YOK-99
CH.NO.98D8-1-1
21-1-99
Y.S.W. Ltd
98D-1-1
LR
YKA 9800004
ALL 25-1-99
MG
FS7-0796
A @ BS N 362765
Danial | Click here to see contact details in the message |
Do you still hve the crankshaft for Pielstick 18PC 2.5V
regards
jasni
