hi all,

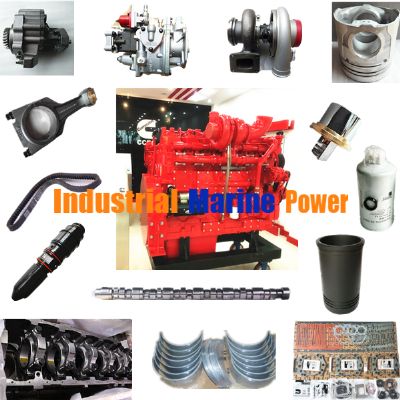

Cummins Diesel Generator KTA19 KTA38 KTA50 NT855 Engine overhaul Parts available for your engine remaintenance, what's your engine number please？
| KT(A)19 Series Overhaul Parts_2000hrs List | |||||
| SEQ | PARTS NAME | PARTS NAME | Q'TY SUGGESTED | P/N. | REMARKS |
| 1 | 电磁开关 | SWITCH,MAGNETIC | 1 | 3050692 | |
| 2 | 空气滤清器 | CLEANER,AIR | 3 | AF872M (fleetguard) | |
| 3 | 水滤 | CORROSION RESISTOR | 3 | WF2076 （fleetguard） | |
| 4 | 燃油滤清器 | FILTER,FUEL | 24 | FS1212 | after 250hrs/3month /10000km |
| 5 | 机油滤清器 | CARTRIDGE,LUB | 12 | LF670 | |
| 6 | 机油旁通器 | ELEMENT,LUBOIL FILTER | 12 | 3889311 | LF777(fleetguard) |
| 7 | 冷却器芯 | CORE,COOLER | 1 | 4095097 | |
| 8 | 冷却器芯衬垫 | GASKET,COOLER ELEMENT | 4 | 206973 | |
| 9 | 机油冷却器壳衬垫 | GASKET,LUB OIL | 1 | 3065790 | |
| 10 | 机油压力传感器 | OIL PRESSURE TRANS DUCER | 1 | 3015237 | |
| 11 | 转速传感器 | PICK UP,MAGNETIC | 1 | 3034572 | |
| 12 | 水温传感器 | TEMP TRANSDUCER | 2 | 3015238 | |
| 13 | 节温器 | THERMOSTAT | 1 | 3076489 | |
| 14 | 风扇皮带 | BELT,V RIBBED | 3 | 3002203 | |
| 15 | 多槽皮带 | BELT,V RIBBED | 6 | 206996 | |
| 16 | 增压器 | TURBOCHARGER | 1 | 3523850 | Serviced as 3801722 |
| 17 | 增压器修理包 | TURBOCHARGER,KIT | 1 | 3545647 | |
| 18 | 止推片 | BEARING,THRUST | 4 | 205112 | |
| 19 | 连杆瓦 | BEARING,CONNECTING ROD | 2 | 205840 | |
| 20 | 主轴瓦 | SHELL,MAIN BEARING STD | 1 | AR12270 | |
| 21 | 进气门 | VALVE,INTAKE | 4 | 207241 | |
| 22 | 排气门 | VALVE,EXHAUST | 4 | 3035110 | |
| 23 | 进气门座圈 | INSERT,INTAKE VALVE | 4 | 3026296 | |
| 24 | 排气门座圈 | INSERT,VALVE EXHAUST | 4 | 205093 | |
| 25 | 气门弹簧上座 | RETAINER, VALVE SPRING | 8 | 205094 | |
| 26 | 气门弹簧下座 | GUIDE, VALVE SPRING | 8 | 3001663 | |
| 27 | 气门导管 | GUIDE,VALVE STEM | 8 | 3202210 | |
| 28 | 气门弹簧 | SPRING,VALVE | 8 | 3629006 | |
| 29 | 气门锁夹 | COLLET,VALVE | 16 | 205091 | |
| 30 | 喷油器 | INJECTOR | 6 | 3016676 | |
| 31 | 喷油推杆 | ROD,PUSH | 6 | 3017961 | |
| 32 | 推杆 | ROD,PUSH | 6 | 205492 | 3057139 |
| 33 | 矩型圈 | SEAL,DEVICE | 6 | 205115 | 3081489 |
| 34 | 缸套 | LINER,CYLINDER | 6 | 4009220 | |
| 35 | 上修包 | SET,UPPER ENGINE GSK | 1 | 3800728 | 3800728 |
| 36 | 下修包 | SET,LOWER ENGINE GSK | 1 | 3801007 | 4089391 |
| 37 | 连杆衬套 | BUSHING | 1 | 3043909 | |
| 38 | 凸轮轴衬套 | BUSHING | 1 | 3002834 | |
| 39 | 卡环 | RING,RETAINIGN | 6 | 205269 | 3631244 |
| 40 | 活塞 | PISTON,ENGINE | 6 | 3096682 | |
| 41 | 活塞销 | PIN,PISTON | 6 | 4095009 | |
| 42 | 活塞环 | SET,PISTON RING | 6 | 4089500 | |
| 43 | 活塞冷却喷嘴 | NOZZLE,PISTON COOLING | 6 | 3007517 | |
| 44 | O型密封圈 | SEAL,D RING | 12 | 3011076 | with 4000504 Seal, 3081489 seal=4024779 PDC kit |
| 45 | O型密封圈 | SEAL,D RING | 12 | 3014668 | |
| 46 | 凸轮轴 | CAMSHAFT | 1 | 3066877 | |
| 47 | 机油泵 | PUMP,LUBRICATING OIL | 1 | 3047549 | |
| 48 | 启动马达 | MOTOR,STARTING | 1 | 3021038 | |
| 49 | 发电机 | ALTERNATOR | 1 | 3016627 | |
| 50 | 水泵 | PUMP,WATER TLA | 1 | 3098960 | |
| 51 | 水泵叶轮 | IMPELLER,WATER PUMP | 1 | 205243 | |
Any queries , welcome!
Kindly,
Ebon
