Cummins KTA19-D(M1) generator

What is Cummins KT19 Marine Generator ?

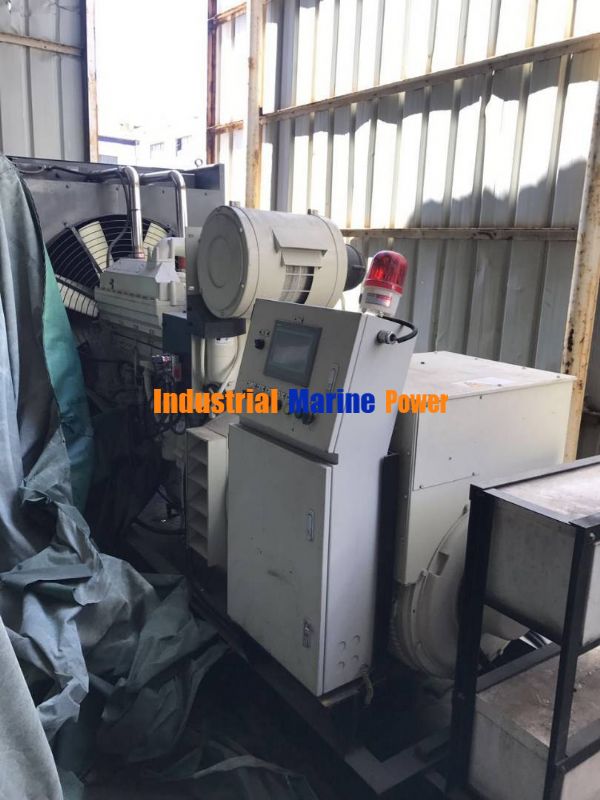

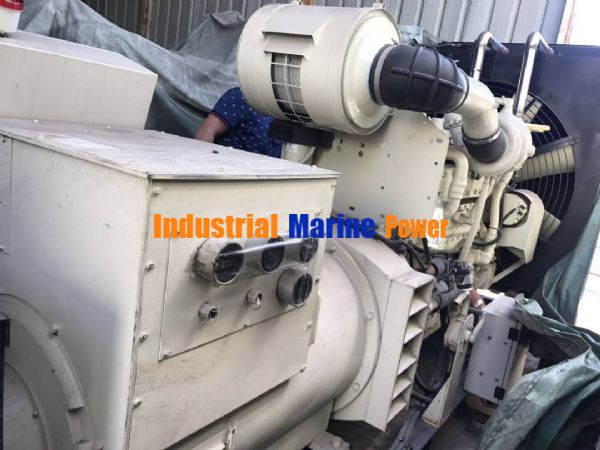

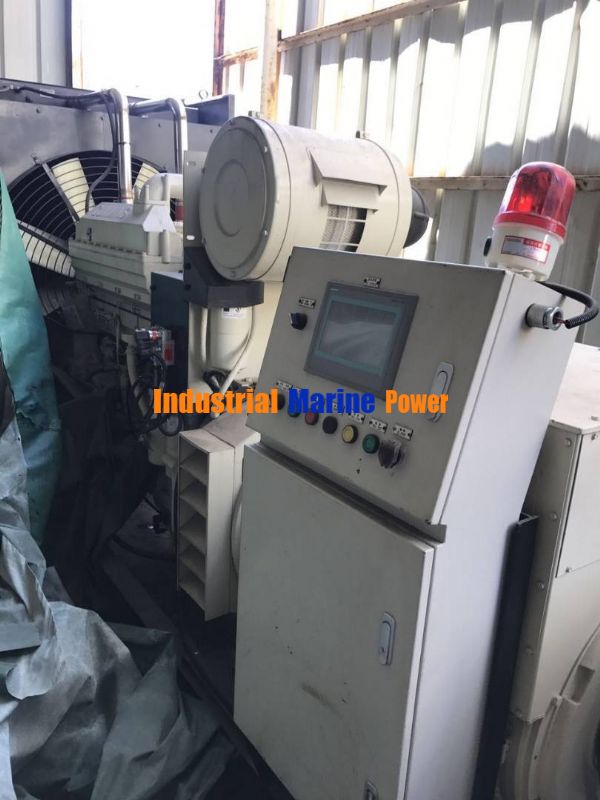

The Cummins KT19 Marine Generator is a marine power generation system that utilizes the Cummins KTA19-D(M1) diesel engine as its prime mover. Cummins is a well-known manufacturer of diesel engines and generator sets for various applications, including marine, industrial, and power generation.

Here's a brief overview of the main components of the Cummins KT19 Marine Generator:

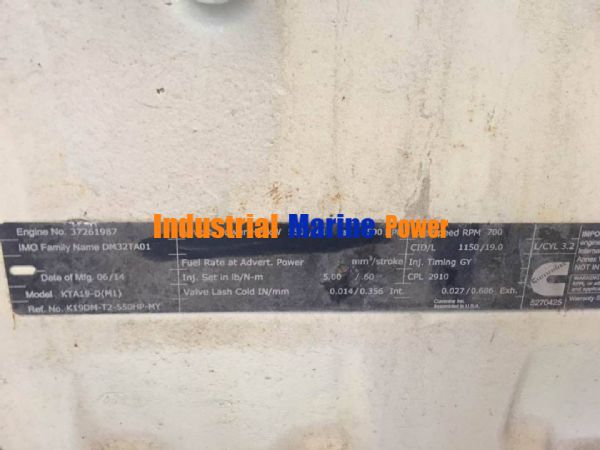

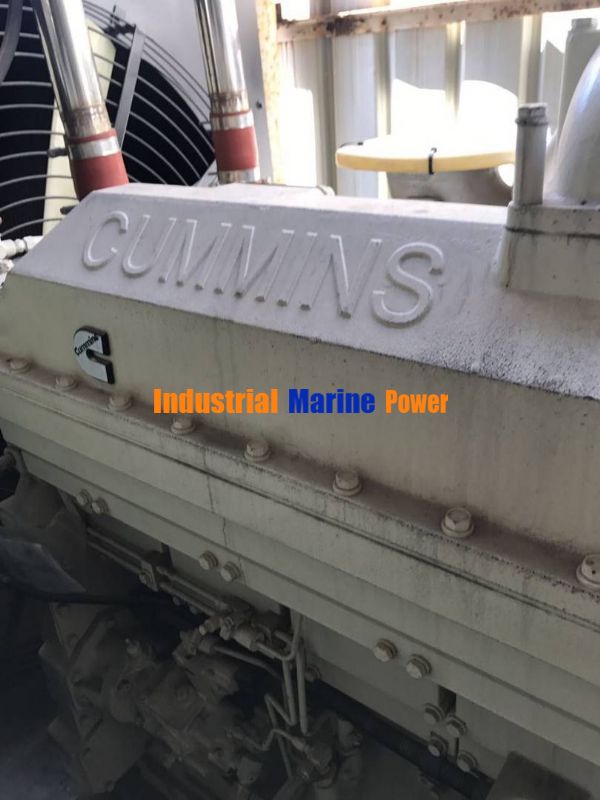

1. Diesel Engine: Cummins KTA19-D(M1)

• Power: 550 HP / 410 kW
• RPM: 1500 The KTA19-D(M1) is a 6-cylinder, turbocharged, and aftercooled diesel engine designed for marine applications. It is known for its durability, reliability, and high performance.

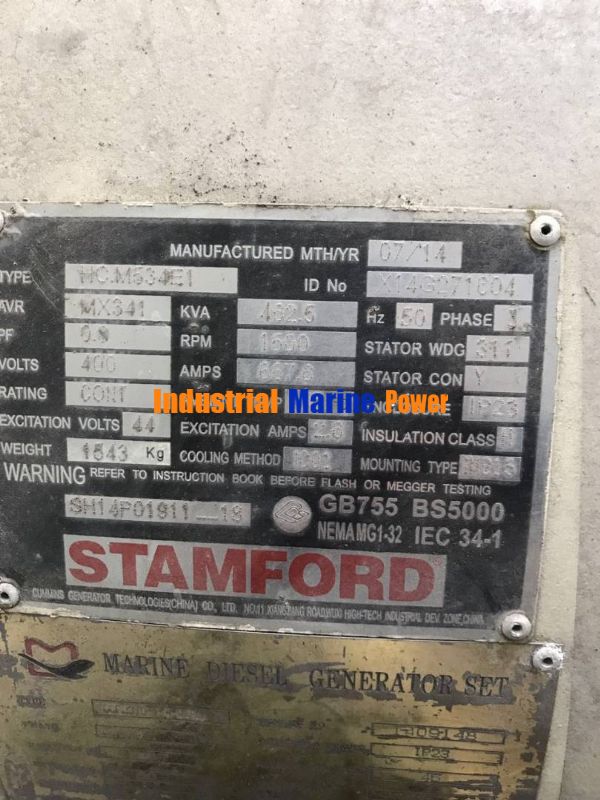

2. Marine Alternator: HCM534E1

• Rated Power: 462.5 KVA
• Rated Frequency: 50 Hz
• Rated Voltage: 400 V
• Rated Current: 667.6 A
• Rated Speed: 1500 r/min
• Power Factor: 0.8
• Phase: 3
• No of Poles: 4 The HCM534E1 marine alternator is designed to generate electricity in combination with the KTA19-D(M1) diesel engine. It is built for marine applications, with features such as corrosion protection and high-quality insulation to ensure reliable performance in harsh environments.

The Cummins KT19 Marine Generator is suitable for various types of vessels and marine applications, providing reliable power for onboard electrical systems, including lighting, communication, navigation, and other essential equipment. For more information on the Cummins KT19 Marine Generator, you can contact Cummins or visit their website to obtain product specifications, documentation, and support.
