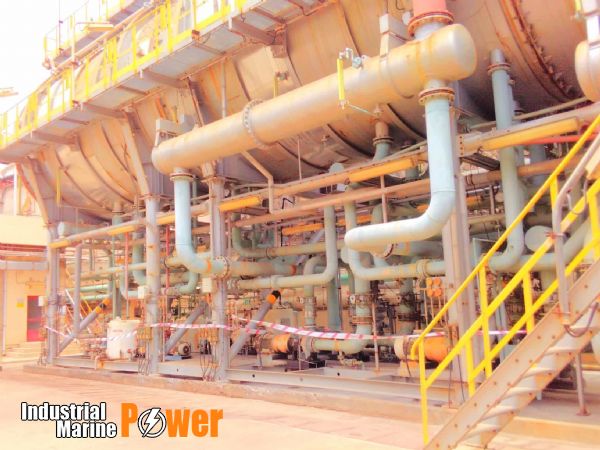

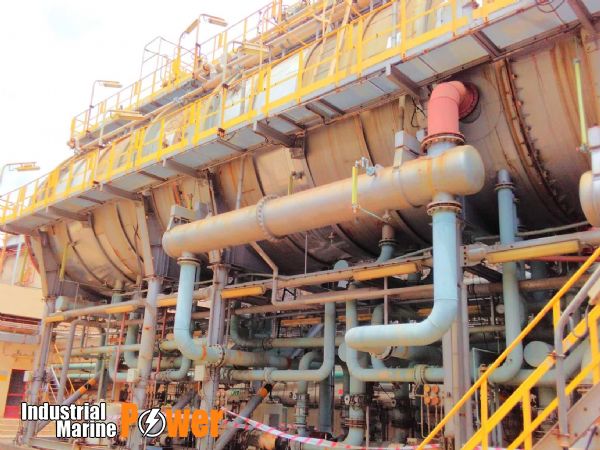

Desalination plant MED-3600

Unit type: horizontal tubes, falling film, multi-effect desalination unit (with steam recirculation).

Number of effects: 9 heat recovery (Evaporator)
1 heat rejection (Condenser)” Number of effects “1 heat rejection (Condenser).

Nominal capacity and quality

Distillate: 3600 tn/day at 11.5 kg/cm2 at battery limit

Distillate quality: Less than 10 ppm TDS (Total Dissolved Solids)

Condensate: Up to 435 tn/day at 5.5 km/cm2 at coil limit

Condensate quality: Less than 10 ppm TDS (Total Dissolved Solids)

Overall capacity: Up to 4035 tn/day distillate + condensate
