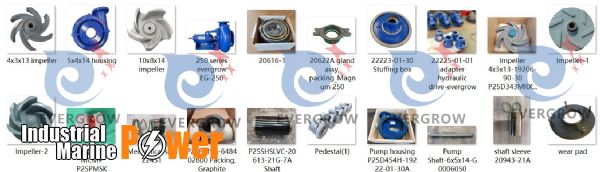

EG-250 centrifugal pump and spare parts
Available sizes 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14, 12x10x23 14x12x22
| ITEM | QTY | Evergrow No. | Mission No. | MCM No. | DESCRIPTION | MATERAIL |
| 1 | 1 | See below | See below | Casing | ||
| 1A | 1 | 1A0399 | 10399-46-1 | P25HG | Gasket,casing | Vellumoid |
| 1B | 12 | 1B3932 | 3932-61 | - | Nut,casing | Stl |
| 1C | 12 | 1C3862 | 3862-76 | P25HSN | Stud,casing | Stl |
| 1D | 1 | 1D2412 | 8505-4-1 | P25ODP | Plug,Casing Drain | Stl |
| 1E | 1 | 1E2412 | 8505-4-1 | P25ODP | Plug,flush line | Stl |
| 2 | 1 | See below | Impeller | |||
| 2A | 1 | 2A1911 | 19110-72 | P25IMS | Seal,impeller | Viton |
| 2B | 1 | 2B3002 | 7300239 | - | Washer,impeller | Stl |
| 2C | 1 | 2C4156 | 7415648 | - | Bolt,impeler lock | Stl |
| 3# | 1 | 322223 | 22223-01-30 | P25SB/MS | Stuffing box,mech.seal | Hard Iron |
| 3& | 1 | 320614 | 20614-01-30 | P25SB/PK | Stuffing box,packed | Hard Iron |
| 3A | 2 | 3A8617 | 3861-117 | P25SBB | Bolt,stuffing box | Stl |
| 4 | 1 | 420622 | 20622A | P25PG | Gland assy,packing | Stl 304 |
| 5A# | 1 | 5A2451 | 22451-1 | P25MS/TT | Seal,mechanical | Tung/Tung |
| 5A# | 1 | 5A684G | 648402600 | P25PMSG | Packing, Shaft - M.S. Backup | Graphite Acrylic |
| 5A# | Option | 5A684K | 648402600 | - | Packing, Shaft - M.S. Backup | Kevlar |
| 5A | 1 | 5A251B | 25014-04M-B | P25PMSK | Packing, Shaft - w/latern ring | Graphite/Acrylic |
| 5A | Option | 5A251D | 250147-04M-D | P25PMST | Packing, Shaft - w/latern ring | Teflon, White |
| 5A# | Option | 5A251C | 25014-04M-C | - | Packing, Shaft - w/latern ring | Kevlar |
| 6 | 2 | 6B3701 | B3701A | P25GABA | Bolt assy,gland | Stl 304 |
| 7 | 1 | 720612 | 20612-02-33 | P25SHFT | Shaft | 42CrMo |
| 7A# | 1 | 7A0943 | 20943-04A | - | Sleeve,shaft | 38CrMoAl |
| 7A& | 1 | 7A0613 | 20613-21G-7A | P25SHSLVC | Sleeve,shaft,ceramic | Ceramic |
| 7B | 1 | 7B9026 | 4371-5-21 | P25CK | Key,shaft | Stl |
| 7C | 1 | 7C2344 | 23444-01-72 | P25SSS | Seal,shaft sleeve | Viton |
| 8 | 1 | 822210 | 22210-1A | P25SRW | Deflector assembly | Composite |
| 9 | 1 | 920618 | 20618-12-1 | P25PED | Frame,grease lubricated | Cast iron |
| 9C | 1 | 9C8505 | 8505-05 | - | Plug, Frame Drain | Stl |
| 9D | 1 | 9D1967 | 1967-1-1 | - | Breather | Stl |
| 9G | 3 | 9G2538 | 2538-1H | - | Bolt,casing jack | Stl |
| 10A | 1 | 10A0626 | 20626 | P25IBBC | Cover,inboard bearing | Iron |
| 10B | 1 | 10B0625 | 20625 | P25IBBCG | Gasket,I.B.Brg.Cover | Vegetable fiber |
| 10C | 1 | 10C0619 | 20619-01 | P25IBBOS | Oil seal, I.B.Brg.Cover | Buna-n |
| 10D | 2 | 10D3861 | 3861-1-1 | P25IBBCB | Bolt, I.B.Brg.Cover | Stl |
| 10E | 2 | 10E1932 | 1932-2-1 | - | Nut, I.B.Brg.Cover | Stl |
| 10F | 1 | 10F2062 | 20620-01 | P251BBES | Exclusion Seal, I.B. Brg. Cvr. | Buna-n |
| 10G | 1 | 10G1641 | 21641-01 | P25ZGF | Grease fitting | Stl |
| 10H | 1 | 10H6841 | 648411908 | P25ZGF | Grease fitting | Stl |
| 11 | 1 | 1100901 | 661009010A | - | Bearing, Inboard & Spacer | Roller |
| 11 | 1 | 1120615 | 20615-1 | P25IBBRG | Bearing,inboard | Vendor |
| 12 | 1 | 1220624 | 20624-01-01 | P25OBBH | Housing,O.B.bearing | Iron |
| 12A | 1 | 12A7496 | 7496-253 | P25OBBHS | Seal, O.B.Brg.housing | Buna-n |
| 12B | 4 | 12B3861 | 3861-138 | P25BHB | Bolts, O.B.Brg.housing | Stl |
| 12C | 2 | 12C3962 | 3932-62 | P25BCP | Nut, O.B.Brg.housing jam | Stl |
| 13 | 1 | 1320617 | 20617A | P25OBBC | Cover,O.B.Bearing | Iron |
| 13A | 1 | 13A9368 | 19368-01 | P25ZGF | Grease fitting | Brass |
| 13B | 1 | 13B7496 | 7496-26 | P25OBBCS | O-ring, O.B.Brg.Cover | Buna-n |
| 13C | 1 | 13C0619 | 20619-02 | P25OBBOS | Oil seal, O.B.Brg.Cover | Buna-n |
| 13D | 2 | 13D3861 | 3861-139 | P25OBBCB | Bolt, O.B.Brg.Cover | Stl |
| 14 | 2 | 1420616 | 20616-1 | P25OBBRG | Bearing, O.B. | Vendor |
| 14A | 1 | 14A6124 | 6124-4-1 | - | Lockwasher,O.B.Bearing | Stl |
| 14B | 1 | 14B6123 | 6123-4-1 | P25BLNK | Locknut, O.B.Bearing | Stl |
