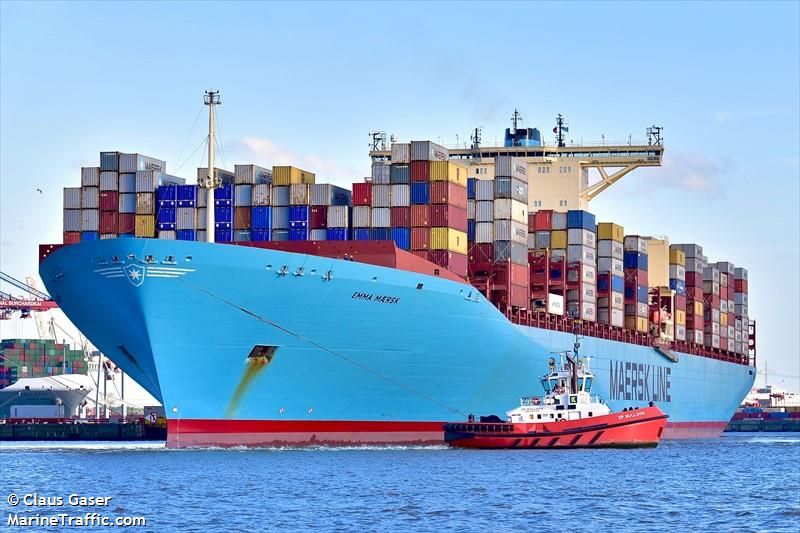

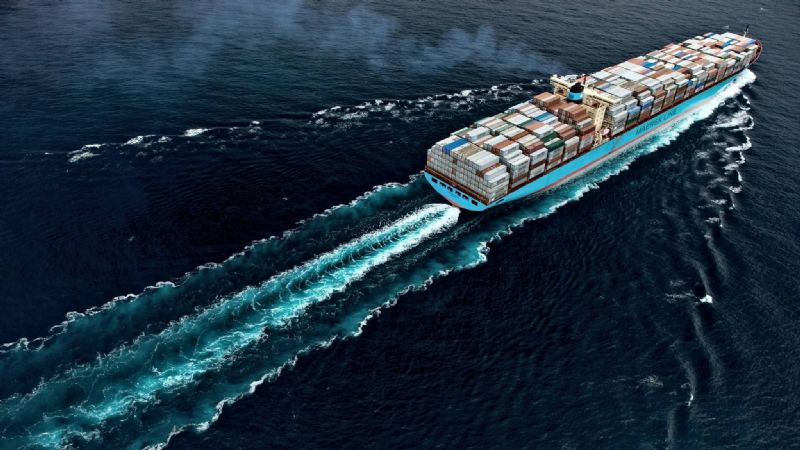

The Emma Maersk is a container ship owned and operated by AP Moller-Maersk. It was built at the Lind Yard in Denmark and is the first container vessel in Maersk’s E series of ships, which includes eight of the largest container ships ever built.
The ship can carry around 11,000TEUs – 1,400 more than any other comparable container ship. The ship sailed its maiden voyage in September 2006.
At 170,974t, the Emma Maersk has an overall length of 397m, a beam of 56m, a draught of 15.5m and a deck edge-to-keel depth of 30m.
It can sail at 25.5kt and can accommodate 30 personnel.
Design and features
The hull is coated with a silicone-based paint to reduce drag and improve efficiency.
The ship has several environmentally friendly features and recycles its engine exhaust. The recycled exhaust is mixed with fresh air and released into the engine for reuse. This feature increases the ship’s efficiency by 12% and reduces emissions.
Cargo capacity
The ship’s maximum capacity is 11,000TEU. In the standard method of calculation, the cargo capacity of the ship is 13,500-15,000TEU. The carrying capacity of a vessel in the common method is calculated by considering the maximum number of containers of different weights loaded on the ship.
The Emma Maersk is highly automated, controlled by advanced computer systems. It is equipped with an integrated computer system monitoring 8,000 data signals.
The system is housed in the engine control room but it can be remotely controlled from the bridge and cargo control room. The automation allows the owners to operate the ship with a crew of 13.
The life-saving equipment on board includes two lifeboats, six life rafts and one man-over-board boat. The ship’s communications include the latest radio, telex, telefax and satellite telephone systems.
Propulsion
The ship is powered by a Wartsila Sulzer RTA96-C 14 cylinder diesel engine, the largest single diesel unit in the world. The 2,300t engine delivers a maximum power of 108,920hp at 102rpm and a maximum torque of 5,608,312lb/ft at 102rpm. The engine measures 89ft in length and 44ft in height. Each cylinder displaces 1,820lhp and produces 7,780hp. The total displacement of the cylinders is 25,480l.
The internal components of the engine are unlike other automotive engines. The top of the connecting rod is connected to a crosshead. The crosshead is then attached to the piston by a long piston rod. In conventional engines, the connecting rod is directly attached to the piston.
Fuel consumption at economical speed is 0.260 bs/hp/hour. Thermal efficiency of the engine is over 50% at maximum economy. The engine consumes 1,660gal of heavy fuel oil an hour.
| Ship Name | EMMA MAERSK |
| Last Ex-name | EMMA MAERSK |
| Ship Type | CONTAINERS |
| Ship Subtype | Container Ship |
| Flag | Danish International Register |
| IMO No. | 9321483 |
| Call Sign | OYGR2 |
| MMSI | 220417000 |
| Ship Status | In Service |
| Speed | 24.5 |
| Class | American Bureau of Shipping |
| Built (YYYY) | 2006 |
| Port Of Registry | Taarbaek |
| Ship Owner | MOLLER-MAERSK A/S (Denmark) |
| Ship Manager | MAERSK LINE A/S (Denmark) |
| Ship Builder | ODENSE STAALSKIBSVAERFT A/S (Denmark) |
| Shipyard | Munkebo |
| Deadweight (DWT) | 156257 |
| Gross Tonnage, mt | 171542 |
| Net Tonnage | 55396 |
| Light Displacement | 61881 |
| TPC | 198.4 |
| Length (OA) | 397.71 |
| Length (BP) | 376 |
| Beam | 56.4 |
| Draft | 16.02 |
| Depth | 30.2 |
| Height | 76.5 |
| Reefer TEU | 1286 |
| TEU | 17816 |
| Gear Details | Gearless |
| Gear Type | Gearless |
| Holds | 23 |
| Engine Type | Diesel |
| Engine Builder | Wartsila |
| Model | 14RT-flex96C |
| Number | 1 |
| RPM | 102 |
| Stroke Type | 2 |
| Cylinder Stroke | 2500 |
| Cylinder Bore | 960 |
| Total Power KW | 68068 |
| Total Power HP | 92545 |
| Thruster | B-2-1750,S-2-1750 |
| Propulsion type | Fixed Pitch |
| Propulsion number | 1 |
| Speed | 24.5 |
| Hull Material | Steel |
| Hull Number | 203 |
| Decks | 1 |
| Inmarsat Telex | 422041710 |
| MMSI | 220417000 |
| Call Sign | OYGR2 |
| Smc Issued | American Bureau of Shipping |
| Smc Audit | American Bureau of Shipping |
| Smc Issued Date | 7.2.2017 0:00:00 |
| Smc Expiry Date | 22.2.2022 0:00:00 |
| Smc Certificate | Convention |
