For Sale Demolition: Ailsa Craig Light Weight (LDT) in Metric or Long ton: 32152 MT

E X C L U S I V E L Y   IN

VESSEL'S PARTICULAR DETAILS

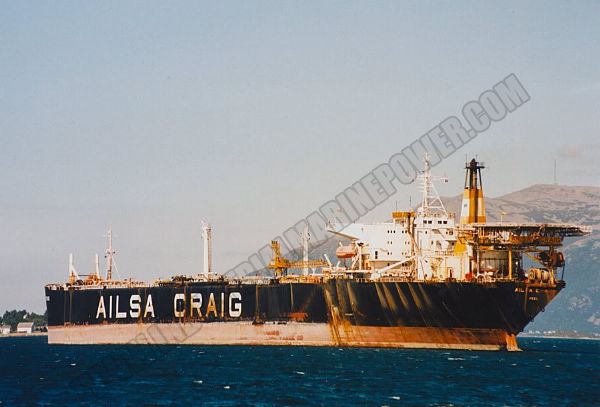

1. Vessel Name : Ailsa Craig

2. Type : Floating Storage Unit

3. Light Weight (LDT) in Metric or Long ton: 32152 MT

4. Country & Year Built : Germany - 01/01/74 - (KL 22.05.73)

5. Length Overall x LBP x Breadth x Depth : 311,24m x 285,87m x 49m x 26,85m

6. LIGHT Draft of the Vessel (FWD/AFT) : 3,155m mean draft

7. GRT/NRT (International) : 103072 / 36471

8. Main Engine (Make, Model, BHP, Present working Condition): AEG Steam Turbine 32000 HP - Good

9. Generator(s) (Number, Make, Model, Kw/KVA, Volts, HZ, AC/DC):

1 x Cummins KTA 38-G1 300/Caterpillar SR48/744KVA/600KW/440V/60Hz

1 x Cummins KTA50-G1/Stamford Newage MHC 734E/1238KVA/440V60Hz

1 x HDW G-15 steam turbine/Siemens IFB 3 324-4/1120KVA/900KW/440V/60Hz

10. Emergency Generators : 1 x Mirrless Blackstone EYSL8MA/BRUSH-ALTERNATOR/850KVA/680KW/440V/60Hz - out of order

11. Bowthruster: N/A

12. All working? N/A

13. Working Propeller (Please confirm Material and weight of the same) : G-NIALBZ-49500 kg

14. Spare Propeller (Please confirm Material and weight if present) : N/A

15. Spare Anchor : Yes

16. Spare Tailshaft : N/A

17. Location of Ballast Tanks : Forepeak

18. Ballast Tanks Coated : N/A

19. Permanent Ballast (Material, Weight, Location) : N/A

20. Under own power or undertow : Under own power

21. Delivery Dates :

22. Last Port of Discharge : Ima Terminal, Nigeria

23. Last 5 cargoes carried by the Vessel : IMA and Okoro crude oils

24. Any Removals : N/A

25. Any Exclusions : N/A

26. Any Conversions to the vessel ? (if yes, please answer the following) : Yes

27. Type of vessel prior conversion : Crude oil carrier

28. Date converted, where ? : on 1992 to FSU at Astilleros Espanoles, Cadiz, Spain

29. LDT proofs of before and after conversion confirming new LDT : 32152MT

30. Any Damages to the vessel (especially those affecting the ligthship) : No

31. Welded or Riveted Construction : Welded

32. Vessel is Single or Double Skinned (Does vessel have any side/Wing

ballast tanks)? : Single (No)

33. Vessel has Single or Double Bottom Tanks? : N/A

34. Any Top Side Tanks? : N/A

35. Vessel been laid up in last three (3) years? (When/Where/How Long) : No

36. Present Class of the vessel : Russian Maritime Register of Shipping (RMRS)

37. Bunkers ROB upon delivery : As per MOA

38. Other Special Items (Aluminium / Stainless Steel onboard the vessel) : 2 x Aluminium Acc. Ladders

39. Heating Coils material : Only in bunker tanks - BRASS

40. General Arrangement Plan : Available upon request (Vessel / Office file)

41. Flag / Port of Registry : Panama/Panama

42. Deadweight : 212003MT

43. Holds / Hatches: 12 Cargo Tanks

44. Derricks / Crane : 2 x 12.5T / 1x 15T Pedestal Crane

45.Draft :

7,9m - can be reduced if required

46. Class:

Russian Maritime Register of Shipping (RMRS) ++++

AT YOUR DISPOSAL FOR ANY
