Gas turbine

Gas turbine General electric PG 6541/B

• Manufacturer: General electric
• Model: PG 6541/B
• Fuel types: liquid and gas
• Base Load ISO Condition: 45.83 MW
• Peak Load ISO Condition: 49.79 MW
• Levels: 5163 rpm
• Generator and exciter moment of inertia: 5.600 kgm2
• Year of manufacture: Enero 1992
• Year of shutdown: 2014
•

Counters

Manual starts: 527

Total starts: 674

Quick starts: 7

Ignition starts: 490

• Emergency trips: 223
•
• High exhaust temperature trips: 23
•

Timers

• Total hours of flame operation: 154.029
• Peak position operation: 8,3
• Gas fuel operation: 137.689
• Distillate fuel operation: 99.995
• Equivalent starts: 2.720
• Equivalent hours: 184.830
• Last inspection: 9 January 2013

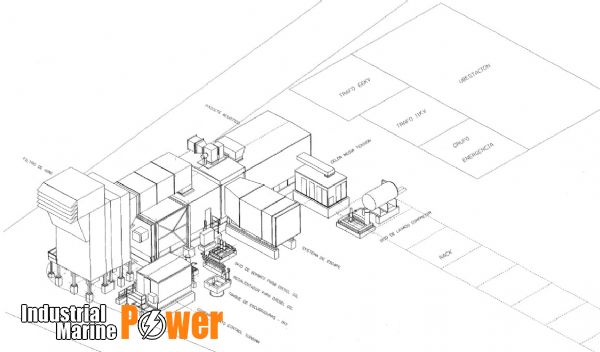

In addition, also included are:

Generator GEC Alsthom (ALSTOM) T190-240, Control system General Electric SPEEDTRONIC Mark V, Gearbox Flender TRL 65 CV (G3), Gas turbine PG 6541/B, Generator, Encapsulated Gas turbine, Medium voltage switchgear, Compressor washing skid, Exhaust drain skid, Diesel pumping skid, Diesel oil superheater, Drainage tank - IM3, Control compartment, Air filter, Gas sweep skid, Steam injection group, Flat pack assembly, Cooling system, Skid gas separator filter, CO2 skid, Diesel oil filtration skid, Gas ventilation skid.
