GEMTECH Differential Pressure Gauges

Subject: GEMTECH Differential Pressure Gauges - Gujarat

Date: 7/21/2023 11:06:34 AM

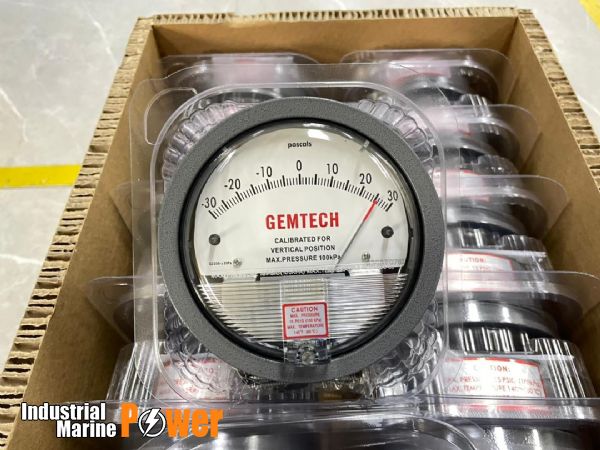

GEMTECH Differential Pressure Gauges in Gujarat
Series G2000,GEMTECH Differential Pressure Gauges are Widely Utilized For Measuring Pressure of Fan And Blowing Machine, resistance of filter, wind speed, furnace pressure, differential pressure of pore plate, the pressure of drum water level, Liquid Amplifier And Hydraulic Pressure System. Meantime, They Are Used To Control The Automatic Valve And Specific Value Of Air-Producer Gas In Combustion And They Are Used To Test Blood Pressure And Respiratory Pressure In Medical Health Care Equipment. There Are More Than 81 Models To Suit Your Needs Precisely.The Key Components Adopt Import Materials.
SPECIFICATION
Ambient Temperature - -21 ~140 -6 ~60

Rated Pressure -20 inHg~30 inHg (-68~103KPa)
Overpressure - Protective rubber stopper will be blown out if rated pressure is up to about 50.8 inHg (172KPa).
Process Connections - 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back
Housing - Die cast aluminum case and bezel, with acrylic cover,Exterior finish is coated gray to withstand 168 Hour Salt Spray Corrosion Test
Accuracy - ±2% of full span at 70(21(±3% on -0, and ±4% on -00)
Range -20 inHg~38 inHg (-68KPa~130KPa)(Special Specification also can be ordered.)

FEATURES

OEM/ODM
There Is No Need To Fill Liquid To Gauge.
The Gauge Can Measure Positive Pressure,Negative Pressure And Differential Pressure.
It Will Be Easy To Install And Measure In Different Ways Because Of Two Groups Of Ports Which Can Measure Positive And Negative Pressure.
To Eliminate The Friction From The Movement Of Gear Wheel By The Mechanism Of Magnetic Magnet Feed.
Exact And Stable Fixed Position Of Needle.
The Gauge Has Great Antiknock Characteristics.
There Are 81 Types Of Ranges. Minimum is 0-60 Pa And Maximum is 0-21-KPa.

PRODUCT APPLICATIONS

Filter Monitoring
Air Velocity With Pitot Tube
Blower Vacuum Monitoring
Fan Pressure Indication
Duct, Room or Building Pressures
Clean Room Positive Pressure Indication

MODELS & ORDERING

GEMTECH By Model Number Popularity

Model	Description
G2300-0	Differential Pressure Gage, Range 0.25-0-0.25" w.c., Minor Divisions .01, Calibrated For Vertical Scale Position.
G2301	Differential Pressure Gage, Range 0.5-0-0.5" w.c., Minor Divisions .02.
G2302	Differential Pressure Gage, Range 1-0-1" w.c., Minor Divisions .05.
G2304	Differential Pressure Gage, Range 2-0-2" w.c., Minor Divisions .10.
G2310	Differential Pressure Gage, Range 5-0-5" w.c., Minor Divisions .20.
G2320	Differential Pressure Gage, Range 10-0-10" w.c., Minor Divisions .50.
G2330	Differential Pressure Gage, Range 15-0-15" w.c., Minor Divisions 1.0.
