MAN 12VP 185 Marine Engine; high speed boat

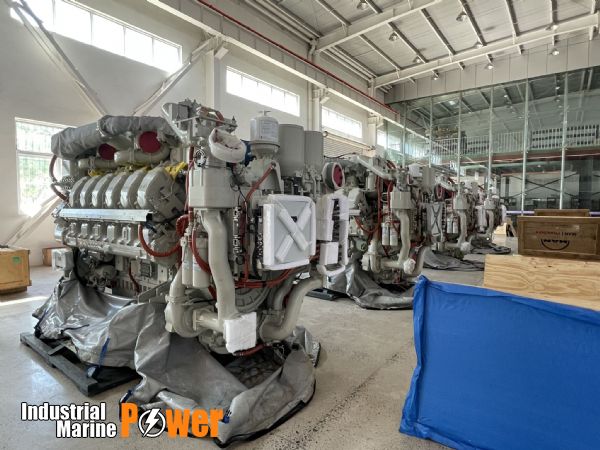

Four sets of MAN12VP185 are available to sell :

The water-cooled exhaust system helps to maintain a low engine compartment temperature whilst the two-stage turbocharging arrangement provides a wide torque curve.

Diesel engine model MAN 12VP185TCM

No. of Cylinders 12

Bore 185mm

Stroke 196mm

Compression Ratio 13.1:1

Idling Speed (Basic Engine) 600 rev/min

Directional Rotation Anti-clockwise looking on flywheel

Configuration 90° Vee

Rated power 2720 kW

Rated speed 1937rpm

Air intake temperature + 45º Centigrade

Sea water temperature + 32º Centigrade

Barometric pressure + 1000 mbar

Exhaust backpressure + 25 mbar

IMO NOx Emissions Regulations

IMO Marpol Annex VI Tier II

Fuel consumption 220g/kw.h +5%

Lubricating oil consumption  less than 1.5 Kgs / hour at 100% load

Further information just inquiry

Mandy
