Mitsubishi Heavy Industrie canopy type diesel gen set 2250KVA

BFMP offer a comprehensive range of soundproof generators with a robust design as a result of many years of experience, innovative technology and the use of top quality components whilst maintaining tight controls over regulations on machine security.

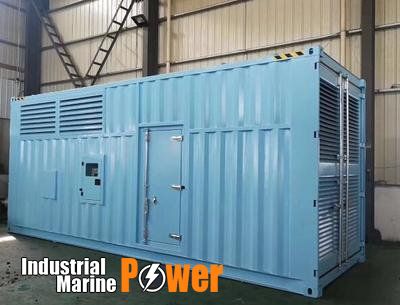

Manufactured from thick galvanised steel and finished with a high-quality paint finish, the canopy is fastened to the base frame for complete stability. Supplied with high-grade soundproofing materials and a residential exhaust silencer, these generator sets offer exceptional noise reduction and weatherproofing ensuring uncompromised performance in outdoor environments.

1. Engine Type S16R2-PTAW-C

Directiniection4-storkeWater-cooled

2.  intake Type  Turbo Charger water-air inter cooler

3.  No.of Cylinders  16-V

4.  Bore stroke  170220MM

5.  Displacement  79.9L

6. Compression Ratio 14.0:1

7.  Prime Power  1960KW

8.  Standby Power  2167KW

9. Prime power of gen set  1800KW(2250KVA)

10.  Standby power of gen set  2000KW(2500KVA)

11.  Rated speed  1500r'min

12.  Type of governor  Electrical Governor

13.  100% Fuel Consumption 464 L/h

14.  Exhaust Air pipe diameter 358mm

15.  Exhaust Gas flow 506 m³/min

16.  Exhaust temperature 550 ?
