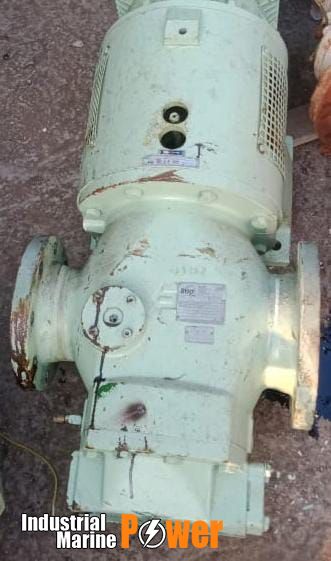

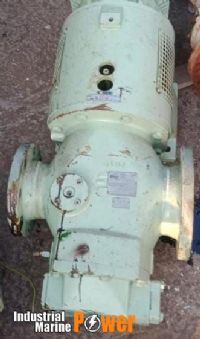

NEW ARRIVAL // USED GOOD IMO PUMP WITH MIDDLE PART - ACF 090 K5 IVBP FOR SALE!!!

IMO PUMP ACF 090 K5 IVBP is a type of positive displacement pump that is used for pumping liquids with varying viscosities. The IMO ACF series is a range of rotary positive displacement pumps that are designed for handling a wide range of fluids, including oils, chemicals, solvents, and other viscous liquids.

Here are some of the specifications for the IMO PUMP ACF 090 K5 IVBP:

• Flow Rate: Up to 90 cubic meters per hour (396 gallons per minute)
• Differential Pressure: Up to 20 bar (290 psi)
• Viscosity: Up to 100,000 cSt (450,000 SSU)
• Temperature: Up to 200°C (392°F)
• Port Size: 2" (DN 50)
• Drive Shaft: Splined, 1.250" (31.75 mm) diameter
• Construction: Cast iron pump casing, hardened steel rotor and idler, mechanical seal
• Mounting: Base-mounted, horizontal or vertical orientation
• Motor: Electric or hydraulic drive, depending on the application

The IMO PUMP ACF 090 K5 IVBP is commonly used in applications such as oil and gas production, chemical processing, and marine industries. Its ability to handle a wide range of viscosities and temperatures makes it a versatile and reliable choice for pumping a variety of liquids.
