Cartridge group :Tpl65-A10 HT :444520
HT 444520

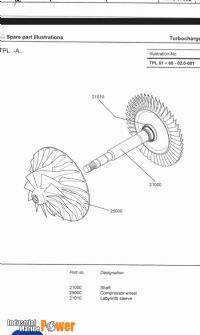

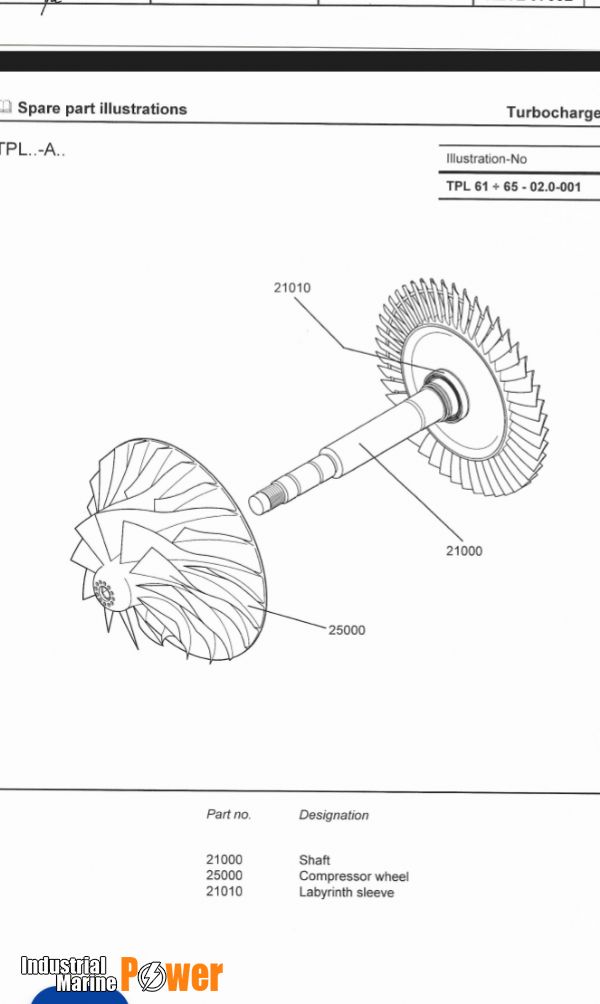

1-Compressor wheel 25000

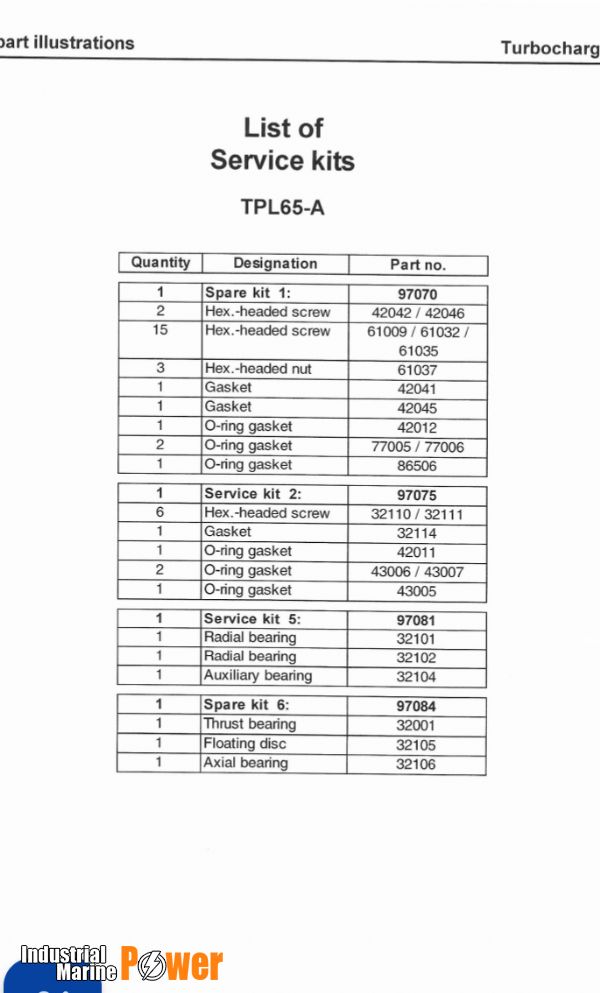

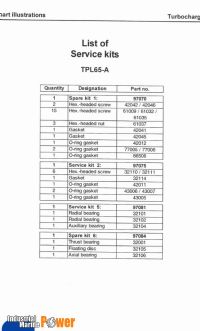

2-Spare parts Set 97084
3- Damping Wire 21007
4- Spare parts Set 97070
5- Spare parts Set 97075
6- Spare parts Set 97081
7- TE Cover Kit 97091
8- partition Wall 43001
9- Sealing Cover 42015
10- safety Ring 42049
11 -Hex-Headed Screw 42016
12- Screw Plug 42047
13- Bearing Bush 32107
14- Hex-Headed Screw 32112
15- Hood 42002
16- Hex- Headed Screw 42016
17- Oil outlet Flange 42040
18- Diaphragm 42043
19- Flange 42044
20- Hex- Headed Screw 42050
21-Shaft 21000
22- Nozzle ring 56001
