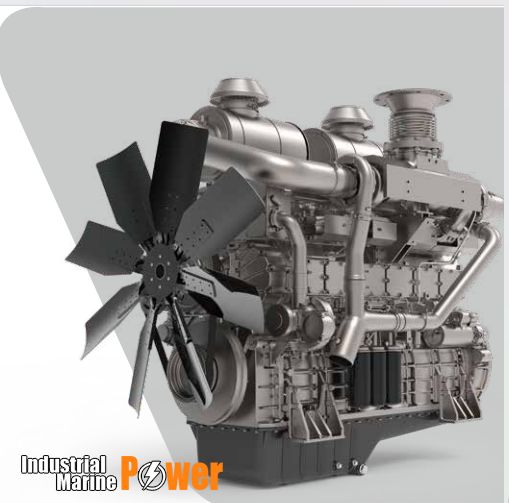

Oil field generator set MHI S16R-PTA-C 1370kw Mitsubishi diesel gen set

 High-strength engine block and crankshaft connecting rod system ,high reliability with high power.

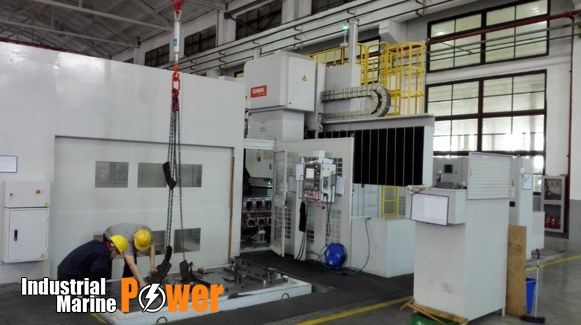

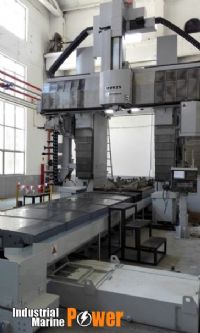

Production of high quality parts for engine.The core parts (turbocharger, high pressure fuel pump and fuel injector) are produced by MHl .

The advanced intake system and fuel system of MITSUBlSHl,high fuel injection pressure, good automization,full combustion, perfect matching o f air intake and fuel supply, and improve economic performance and emission performance.65L large displacement, high reliability and long

service life of diesel engine.Cases continuous Gen set,such as field of mine, island.

TECHNICALPARAMETERS

 Model  S16R-PTA-C

Engine Type  Direct injection/4-storke/Water-cooled

Intake Type Turbo Charger Water-air inter cooler

No.of cylinder  16_V

Borestroke 170180mm

Displacement 65.37L

Compression Ratio 14.0:1

 Prime Power with fan 1450kw

Standby Power with fan 1590kw

Prime power of gen set 1370KW(1710KVA)

Standby power of gen set 1500KW(1875KVA)

Rated speed 1500r'min

Governor type  Electrical Governor

100%Fuel Consumption 351 L/h

Exhaust Air pipe diameter 358mm

Exhaust Gas flow 337 m³/min

 Exhaust temperature 520

Intake Air flow 127 m³/min

Oil total 230 L

Oil consumption rate 0.4 g/kw.h

Flywheel Teeth 193 ?

Flywheel Housing SAE No.00

Flywheel SAE 21in

Dimension{LxWxH) 307714351810mm

Gross weight 6759kg
