RECONDITIONED ALFA LAVAL MAB-103 AND MAB-104 OIL SEPARATORS AND SPARES

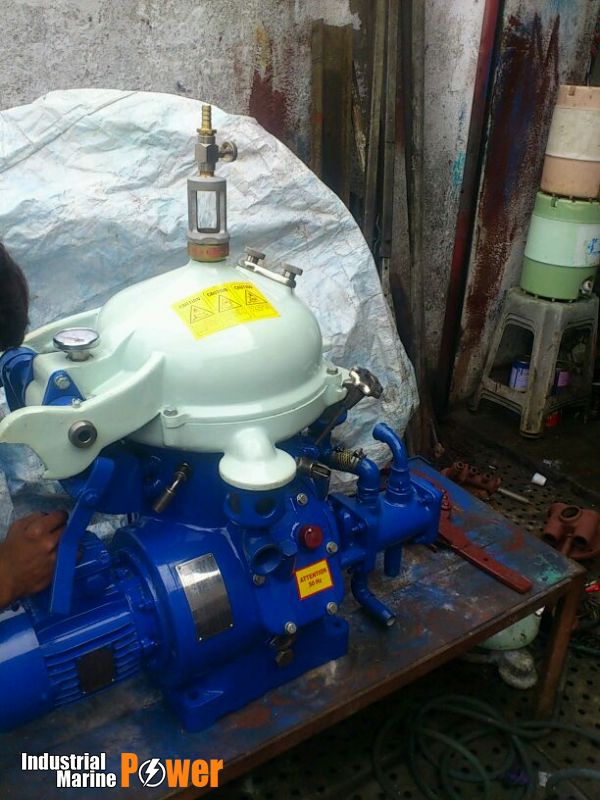

Reconditioned Alfa Laval separator MAB 103

Machine Application:

The MAB 103 high speed disc stack centrifuge is designed for purification or clarification of fuel oils, engine oils, lubricating oils, and various mineral oils used on board marine installations and in industrial applications.

The MAB 103 is driven by a horizontal driveshaft, friction clutch, worm wheel gear and vertical drive shaft. This is all housed within the separator frame, the worm wheel gear is situated in an oil bath to ensure smooth running. The brake is situated on the top part of the frame; braking directly onto the bowl.

The bowl is fixed onto the vertical drive shaft situated in the top part of the frame. The frame hood is hinged to enable easy access when cleaning or carrying out maintenance.

MAB 103 centrifugal separator/oil purifier

Double pump with fittings

Motor - 440 volt, 60 Hz/380V,50HZ 3-phase

Complete set of gravity disks

Water supply device

Complete set of tools

Set of spare parts for extended use

Set of instruction manuals

Separator Throughputs and Capacities

The MAB 103 is suitable for the separation of marine diesel, biodiesel, distillate, lubricating and hydraulic oils. (Throughputs may vary depending on temperature and viscosity of liquids)

Separators re-conditioned according to this mandatory system.

We replace the following parts with New / Unused parts, such as...

1. Bowl Spindle

2. Worm Wheel Shaft

3. Worm & Worm wheel

4. Bearing Housing

5. Bottom Bush

6. All Seal Rings, Gaskets, Springs, Bearings.

Machine Application

The MAB 104 high speed disc stack centrifuge is designed for purification or clarification of fuel oils, engine oils, lubricating oils, and various mineral oils used on board marine installations and in industrial applications.

Separator Design

The MAB 104 is driven by a horizontal driveshaft, friction clutch, worm wheel gear and vertical drive shaft. This is all housed within the separator frame, the worm wheel gear is situated in an oil bath to ensure smooth running. The brake is situated on the top part of the frame; braking directly onto the bowl.

The bowl is fixed onto the vertical drive shaft situated in the top part of the frame. The frame hood is hinged to enable easy access when cleaning or carrying out main- .

   MAB 104 centrifugal separator

   Double pump with fittings

   Motor - 440 volt, 60Hz, 3-phase

   Complete set of gravity disks

   Water supply device

   Complete set of tools

   Set of spare parts for extended use

   Set of instruction manuals

MUMBAI, INDIA
