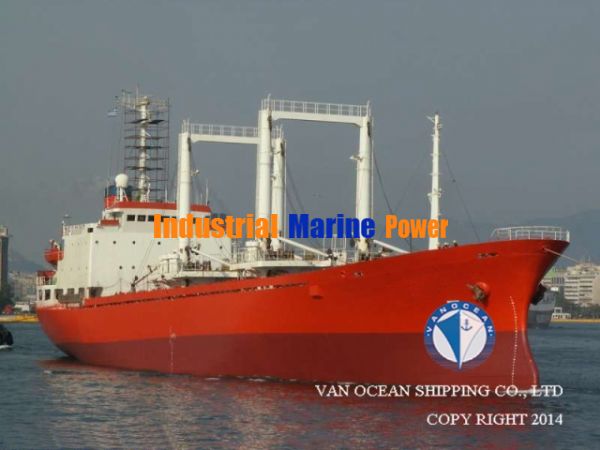

REEFER/REF119/ 1980-10-29/5050.71CBM/ USD 1.6 MILLION

NO.

REF119

TYPE

REEFER

PORT OF REGISTRY

TARAWA

FLAG

KIRIBATI

BUILT YEAR

KEEL LAID: 1980-06-14;

BUILT: 1980-10-29

BUILT PLACE

MIYOSHI SHIP BUILDING CO., JAPAN

CLASS

ISCLASS (INTERNATIONAL SHIP CLASSIFICATION)

SS

DD

LOA

112.90 M

LBP

105.00 M

BEAM

16.00 M

DEPTH

9.72 M

DRAFT

SUMMER: 6.516 M;

WINTER: 6.381 M;

TROPICAL: 6.651 M;

FRESH: 6.645 M;

TROPICAL FRESH: 6.780 M;

MAXIMUM SUMMER DRAFT: 6.78 M

DISPLACEMENT AT SUMMER DRAFT

6994.80 MT

PANAMA GT/NT

4586.78 / 3240.22

SUEZ GT/NT

4295.18 / 3239.75

GT

4056 MT

NT

1678 MT

DWT

SUMMER: 4274.99 MT

LIGHTWEIGHT

2719.81 MT

FLOOR SPACE CAPACITY

GEAR

DERRICKS 6×3 MT

ME

KOBE MITSUBISHI

TYPE 6UEC52 / 105D

SUPERCHARGED, TWO STROKE CYCLE, SINGLE ACTING CROSS HEAD, DIRECT REVERSING DIESEL ENGINE

MAX CONTINUOUS OUTPUT: 6200BHP AT 175RPM

CONTINUOUS SERVICE OUTPUT: 5580 BHP AT 169RPM

AE/GENERATOR

3×DAIHATSU TYPE DS 18A

KW/RPM: 400/900

VOLT/HZ: 440/60

SPEED/CONSUMPTION

17 KTS

ME CONSUMPTION: 10MT/DAY

AE CONSUMPTION: 1.8MT/DAY(SAURY LADEN), 3.0MT/DAY(TUNA LADEN)

ME FUEL OIL CONS SEA SPEED LADEN 15MT / BALLAST 13MT / ECO SPEED LADEN 13MT / ECO SPEED BALLAST 11MT

ME SYSTEM LUB OIL CONS 50LT

ME CYLINDER OIL CONS 160LT

DIESEL GENERATOR BLENDED OIL CONS LADEN 3.5MT / BALLAST 1.8MT / PORT IDLE 1.5MT / PORT WORKING 2.5MT / LUB OIL CONS 40LT

BOILER PORT CONS 0.6MT

FUEL TYPE

IFO180

HOLD NUMBER

3

HATCH NUMBER

3

HATCH SIZE

NO.1: 6.50×5.50 M

NO.2 & 3: 6.60×5.50M

COMPARTMENT

9

DECKS

DECK AREA

2068.31 SQM

DECK HEIGHT

CAPACITY (CBFT)

178367

CAPACITY (CBM)

5050.71

TYPE OF THE VENT SYSTEM

VENT

TEMPERATURE

-30/+15 DC

P&I CLUB

MARITIME MUTUAL INSURANCE ASSOCIATION (NZ) LTD

TPC AT SUMMER DRAFT

13.42

PROPELLER

NAKASHIMA PROPELLER CO., LTD

5 BLADES SOLID TYPE, DIAM=370MM, PITCH=3525MM

WATER BALLAST CAPACITY

89 MT (FORE PEAK ONLY)

FRESH WATER CAPACITY

125 MT

FUEL OIL CAPACITY

900 MT

DIESEL OIL CAPACITY

180 MT

LUB OIL TANK

81.54 CBM

HATCH TYPE

MACGREGOR HATCHCOVERS HYDRAULICALLY OPERATED

MACGREGOR TWEENDECK COVERS FOLDING TYPE, WIRE OPERATION

COOLING SYSTEM

DIR EXPANSION R-22

AIR CHANGES

90 / HOUR FULL – 40 / HOUR SLOW

AIR RENEWALS

4 / HOUR

COOLING SECTIONS

6

1A / 1BC / 2A / 2BC / 3A / 3BC

GRATINGS

HOLED WOODEN – MAX STRENGTH FOR FORKLIFTS (4 PNEUMATIC TIRES) 5MT

DISTANCE FROM BOW TO

NO.1 HATCH CENTER: 33.4 M

NO.2 HATCH CENTER: 53.6 M

NO.3 HATCH CENTER: 74.6 M

BRIDGE: 83.3 M

DELIVERY PLACE

CHINA

INSPECTION PLACE

CHINA

PRICE

USD 1.6 MILLION

REMARK

SS, ANNUAL AND OVERHAUL COMPLETED IN 2014-11
