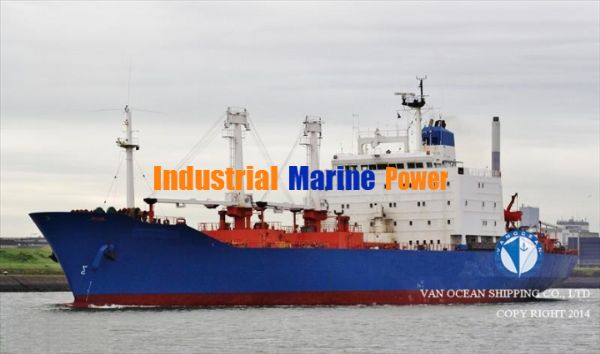

REF657/REEFER/1979-12/16905.4CBM/ USD 3.2 MILLION

NAME

REF657

TYPE

REEFER

FLAG

ST.VINCENT AND THE GRENADINES

PORT OF REGISTRY

KINGSTOWN

BUILT YEAR

1979-12

BUILT PLACE

AALBORG, DENMARK

CLASS

RMRS, ICE STR KML3 REF

(LU3 AT 6.15M<=D<=9.06M)

NAVIGATION AREA

SS

2015-10

DD

2015-10

LOA

144.35 M

LBP

135.01 M

BEAM

24.20 M

DEPTH

14.90 M

DRAFT

10.12 M

GT

11243.00 MT (INTERNATIONAL)

12177.63 MT (SUEZ)

12735.00 MT (PANAMA)

NT

6642.00 MT (INTERNATIONAL)

9242.11 MT (SUEZ)

9061.00 MT (PANAMA)

DWT

12570 MT

LDT

6971 MT

DISPLACEMENT

GEAR(S)

CRANES 4 x 5 MT 8.5M OUTREACH HO1,2,3  HO4 AFT ACCOM ABT 6M

ME

B&W 8L67GF, 15000 BHP, 119 RPM

AE/GENERATOR

3 x B&W 6S28LH 1060 KWT (1440 HP)

3 x 1250 KVA, 440V, 60 HZ

COOLING SYSTEM

4 x SABROE REFRIGERATING COMPRESSORS,  R22

SPEED/CONSUMPTION

LOAD: 16.5ON27(380)+7(380)

BAL: 17ON25(380)+3.5(380)

PORT EMPTY 2.5T LOAD 5.5T ORIGINALLY EXC 20KNOTS

FUEL TYPE

IFO 380 CST

TANKS CAPACITY

HOLD NUMBER

4

HATCH NUMBER

4

HATCH SIZE

COMPARTMENT

18

DECKS

5

DECK AREA

DECK HEIGHT

CAPACITY (CBFT)

597010 INCLUDES COAMINGS

CAPACITY (CBM)

16905.4

FLOOR SPACE CAPACITY(SQM)

6808.16

GRATING

SUITABLE FOR PNEUMATIC FORKLIFTS WITH ALL-UP WEIGHT OF 7 TONES

TEMPERATURE ZONE

8, 1AB/CD, 2AB/CDE, 3AB/CDE, 4AB/CD

TEMPERATURE

-25/ +13 DC

VENT/TYPE OF THE VENT SYSTEM

80 /HR

AIR CHANGE

3-4 /HR

PALLETS

5100

CONTAINER CAPACITY

24 FEU ON DECK(30.5T)+12 TEU(17T)

REEFER PLUGS

36

INSURANCE

P&I – INGOSSTRAKH, MOSCOW

H&M - RENAISSANCE INSURANCE GROUP  LTD.

CREW

ACCOMMODATION

INSPECTION PLACE

BUSAN

DELIVERY PLACE

ZHOUSHAN, CHINA IN 05-25

PRICE

USD 3.2 MILLION

REMARK

DOORS: SIDE DOORS 4P+S

HATCH COVERS: STEEL & HYDRAULICALLY OPERATED, WEATHER TIGHT INSULATED

PROPELLER: RIGHT HAND SINGLE SCREW, 5 BLADES, SOLID, DIA 5.7 M, NI-AL BRONZE

ANCHORS: WEIGHT 2 x 5408 KGS + 1SPARE 5430 KGS; CHAIN – 56 MM/GRADE U3(A)

WINDLESS: ELECTRO-HYDRAULIC 15 MT x 9 M/MIN

MOORING WINCHS: ELECTRO-HYDRAULIC 10 MT x 15 M/MIN

2 x OPEN LIFTBOATS, VIKING FOR 30 PERSONS
