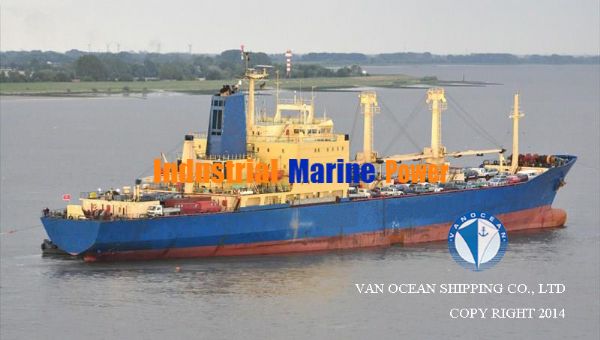

REF658/REEFER/1980-03/16905CBM/ USD 3.8 MILLION

NAME

REF658

TYPE

REEFER

PORT OF REGISTRY

KINGSTOWN

FLAG

ST.VINCENT AND THE GRENADINES

BUILT YEAR

1980-03

BUILT PLACE

AALBORG, DENMARK

CLASS

RMRS, ICE STR KMLU2 A2 REF

(LU2 AT 6.15M<=D<=9.06M)

SS

2015-09

DD

2015-09

LOA

144.35M

BEAM

24.24M

DEPTH

14.91M

DRAFT

10.14 M (SUMMER)

GRT

INTERNATIONAL：11243.00 MT

SUEZ：12177.63 MT

PANAMA：12735.00 MT

NRT

INTERNATIONAL：6642.00 MT

SUEZ：9242.11 MT

PANAMA：9201.00 MT

DWT

12570MT  (SUMMER)

LDT

7300MT

INSURANCE

P&I – HANSEATIC P&I

H&M - SOVAG, HAMUBURG

TEMPERATURE COMPARTMENTS/:

18

TEMPERATURE ZONES:

8

COMMON TEMPERATURE SPACES:

1AB/CD, 2AB/CDE, 3AB/CDE, 4AB/CD

TEMPERATURE

-25 /+12 DC

GEAR(S)

CRANES 6 x 5 MT MAX SAFE OUTREACH 7.3 M

ME

B&W 8L67GF, 16190 BHP

AE/ GENERATORS

3 x B&W 6S28LH 1060 KWT (1440 HP)

3 x 1250 KVA, 440V, 60 HZ

SPEED/CONSUMPTION

LOAD: 16.5ON27(380)+7(380)

BAL: 17ON25(380)+3.5(380)

PORT EMPTY 2.5T LOAD 5.5T ORIGINALLY EXC 20KNOTS

GRATINGS

SUITABLE FOR PNEUMATIC FORKLIFTS WITH ALL-UP WEIGHT OF 7 MT

HOLD NUMBER

4

HATCH NUMBER

4

CAPACITY (CBFT)

597005 INCLUDES COAMINGS

CAPACITY (CBM)

16905

FLOOR SPACE CAPACITY(SQM)

6808

TYPE OF THE VENT SYSTEM

90 AIR CIRC PER/HOUR; 4 AIR RENEWALS P/H

INSPECTION PLACE

BERTH PORT

DELIVERY PLACE

BERTH PORT

PRICE

USD 3.8 MILLION

REMARKS

5 DECKS

5100 PALLETS

33 REEFER SOCKETS ON DECK

DOORS: SIDE DOORS 4P+S
