RORO PASSENGER SHIP REF BEXT027/ SG /2015

FOR SALE RORO  PASSENGER SHIP

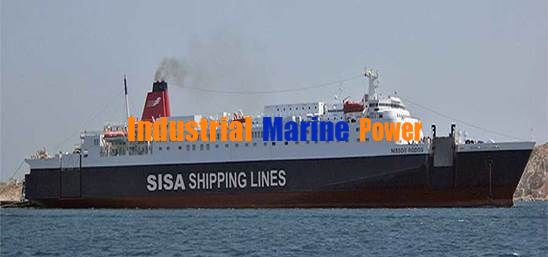

NAME HELLENIC VOYAGER

PORT OF  REGISTRY -  NO. PIRAEUS  - 11520 FLAG GREEK SHIP'S TYPE RO-PASS

BUILT OCTOBER 1987

BUILDER MHI,SHIMONOSEKI, JAPAN

CONSTRUCTION / MATERIAL STEEL

CLASSIFICATION SOCIETY NO. RINA   - 82420

TYPE OF VOYAGE EUROSOLAS -CATEGORY B OR B SHORT INTERNATIONAL VOYAGES GMDSS A1-A2-A3 MAIN  DIMENSIONS L.O.A. 192.50 M L.B.P. 175.00 M

BREADTH   MOULDED 27.00 M

DRAUGHT  SUMMER(LOAD) 6.85 M MOULDED

DEPTH   21.14 M

PASSENGERS

SUMMER 1.484

WINTER 834

DEADWEIGHT  (DWT )

DWT 5.904 T

LIGHTSHIP 11.282 T

DISPLACEMENT  17.186 T

CARS / TRUCKS

TRAILERS  CAPACITY    2105 LANE METERS

115 UNITS  X 16 M LENGTH

GARAGE  DECK 5 56 TRAILERS / 312 CARS  / 1045 LANE METERS

GARAGE DECK 3        59 TRAILERS / 333 CARS /  1060 LANE METERS

GARAGE DECK 2 ONLY CARS  / 56 PCS

GARAGE DECK 1 ONLY CARS  / 47 PCS

TOTAL CARS 748

TOTAL TRAILERS 115

TOTAL LANE METERS 2105

DECK -AREAS /SPACE M2 TANK TOP= 755 M2 - F DECK=894 M2 MAIN DK=4209 M2-UPPER DK=4040 M2 MAX. WEIGHT  50 T PERMISSIBLE LOAD (MAIN & UPPER  DECKS 16 T / AXLE ( TWINWHEELS )

PERMISSIBLE LOAD (E DECK/TANK TOP) 1 T / AXLE   (PRIVATE CARS)

REFFER PLUGS 67 PLUGS 220 V - 4 PLUGS 440 V AIRCHARGERS IN CARGO DKS 20 CHARGES/HOUR FREE  HEIGHTS

UPPER GARAGE DECK   4.50 M

MAIN GARAGE DECK                   4.55 M

F DECK 4.92 M

TANK TOP 2.23 M

RAMP'S  DIMENSIONS

STERN ( STRAIGHT ) RAMP L= 14.0 M    B= 6.35 M    SWL= 50 T

STERN ( SIDE P+S ) RAMP L= 11.0 M    B= 7.0 M      SWL= 50 T

BOW SIDE (STARBD)RAMP L= 20.0 M    B= 6.5 M  SWL= 50 T

INTERNAL RAMP           MAIN  TO UPPER  L= 43.0 M                B= 3.80 M

INTERNAL RAMP           MAIN TO LOWER DECK PRIVATE CARS OR VANS  L=28,80 M

B=3,20 M   SWL= 2 T

TANK CAPACITIES

HEAVY   FUEL OIL 805M3

DIESEL  OIL 109M3

LUBRICATING OIL 58M3

FRESH WATER 1296M3

BALLAST WATER 874 M3

PASS  CABINS

LUX 2 CABINS 8    BERTHS: 16

LUX 4 CABINS 2    BERTHS: 8

A2 CABINS 26  BERTHS: 52

A4 CABINS 24  BERTHS: 96

TOTAL CABINS CABINS: 60  BERTHS: 172

TOTAL DORMITORIES BERTHS: 112

CREW CABINS

CREW CABINS CABINS 57    BERTHS: 86

TOTAL CABINS CABINS: 57  BERTHS: 86

AIR SEATS

CASTELLO LOUNGE 191 AIR SEATS

IALYSSOS LOUNGE 144 AIR SEATS

PANORAMIC SEA VIEW 52 AIR SEATS

RHODES 178 AIR SEATS

TOTAL AIR SEATS  565 AIR SEATS

PROPULSION  CONFIGURATION  DIESEL  MECHANIC SHAFTLINE TYPE CONVENTIONAL PROPELLER TYPE & NO OF UNITS TWO(2) KAMEWA CONTROLLABLE PITCH PROPELLERS (

CPP)

MAIN ENGINES ( 2 ) MAKER : MITSUBISHI-MAN

TYPE    : 8L58/64 X 2 SETS

POWER  :  28800 BHP

SPEED   : 428 RPM / 415 -428

AUXILIARY ENGINES ( 3 ) MAKER  : DAIHATSU 6DL26

TYPE     : 6DL26

POWER   : 1080 KW

SPEED    : 720RPM

GENERATOR : 1280 KVA

POWER FACTOR : 0,8 COS. PHI

EMERGENCY ENGINE ( 2 ) POWER    : 150 KW

SPEED     : 1500 RPM

GENERATOR  : 180 KVA

POWER  FACTOR : 0,8 COS. PHI

BOW THRUSTER MITSUBISHI -KAMEWA

TYPE: 2000 MSB/ X 1 /16.3 TNS

OUTPUT: 1000 KW

FIN STABILISERS DENNY BROWN LIFTS 59 TONS SEAWAGE TREATMENT  EVAC AIRCONDITIONING 1 UNIT CARRIER / DAIKIN 2 UNITS TYPE  OF  F.OIL &  D.OIL IFO 380 - 0,96 & MGO 1% - 0,86 SP.GR.

CONSUMPTION AT SERVICE SPEED 2.600KG / HOUR CONSUPTION IN PORT BOILER 100 KG/H IFO 380 CST AUXS CONSUPTION ON ONE GENSETS 110 KG/H  ON TWO GENSETS 220 KG/H

SERVICE    SPEED      21.0 KNOTS

MAXIMUM  SPEED       23,0 KNOTS SEA TRIALS

ENDURANCE 5000   MLS

 SOLAS COMPLIENCE:

the vessel can conduct short international voyages.

the ship was constructed on 1987, so it is according to SOLAS consolidated edition 1992 for ships constructed on or after 1st of July 1986, regarding exist spaces. All spaces modified during the last conversion (November 2009 to April 2010), carried out are according to SOLAS 1974 as was in force during conversion in 2010.

 TRADING IN MEDITERRANEAN SEA.

OWNERS IDEAS EURO 11.7 MILL
