Waukesha 4.2 mW Continuous NG Power CoGeneration Plant

WAUKESHA - 4.2 mW - Continuous NGPower CoGeneration Plant
with Absorbtion Chiller and Waste Heat Recovery Heat Exchangers
ENGINE and COGENERATON UNIT SPECIFICATIONS:

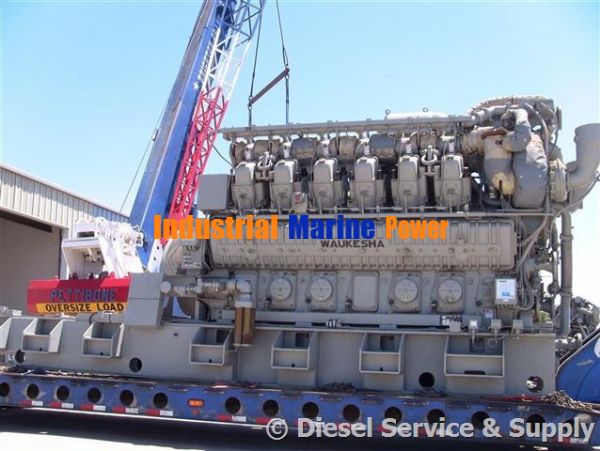

2 - ENGINES - Make/Model: 2004 Waukesha Model # 2V-AT27(jL,
Engine Serial #: (94554/1 and (94554/2
ClassNolt/Phase: Class F 105 degrees C rise. Voltage rating of
i2,470 Volts, 3 Phase, 60 Hz. O.SPower Factor.
Fuel Type: NG
Overall Dimensions: 355" L x 96" W x 133" H,
Overall Weight: 115000 Ibs.
Hours In Use: 1

GENERATORS: 2 - End Models: I<.ATO Engineering lnr.
Model it SP10.5-4200 2/3 pitch generator rated 2,100 kIN / )625 kVA.
Serial#: C94554 901/1 and C94554-901/2
Model Details: Model BPi OS 4200, 2955@2204 kIN Hp,
@ 900 RPM.2/3 pitch generator rated 2,100 kIN/2625 kVA.
Class I: 105 degrees C rise. Voltage rating of 12,470 Volts,
3 Phase, 60 HI. 0.8
Leads: 6, Non ·Reconnectable,
Controls: Auto Start/Stop, Safety Shut Down, Air Cleaner,
Muffler, Digital Panel, Digital Engine Panel, Skid Mounted,
More Details: Power Factor. Generator is six wire WYE
connected equipped with a PMG. The enclosure isTEfT
with top mounted air to air heat exchanger with stainless
steel tubes. Side mounted High Voltage terminal box with
differential and cross current compensation Cl's. 100 ohm
winding temperature, bearing temperature and air discharge
RTD's.Generator bearings are self lubricated with onboard
lube pump, oil cooler and filtration system.
Generator Controls including VOltage regulator, var/pf
controller and synchronizer.Avtron 200 amp, 40 ohm,
10 second neutral grounding resistors.
Shipping Weight: 36,000 pounds.

ABSORBTION CHILLER: Trane - Model ,lBSDOSOOHHorizon
Single stage absorption chiller,
Rated: 781 tons, 460 Volt, 60 hI..
Water Flow Rates:
Hot Water Flowrate: 1,442 GPM @250 - 230 F
Chilled Water Flowrate: 1,24~ GPM @59 F/44 F
Copper tube heat exchangers in the evaporator, condenser
and absorber sections.
Irane UCP2 Chiller Control Panel with all monitoring, control
and protection functions.
VFD controlled solution pumps. Hot water and cooling water
flanged connections.
Shipping Weight: 34,843 pounds

Asking $1,800,000

Contact seller for more information
